Structural design of railway platform shelter

Structural design of shelter for railway platform. Design of steel superstructure, foundation blocks and reinforcement.
Documentation in competition phase (location is not specified with regard to client request).

Axial distance between columns (span): 6 m
Shelter widths: 7,8 m
Shelter length: 100 m

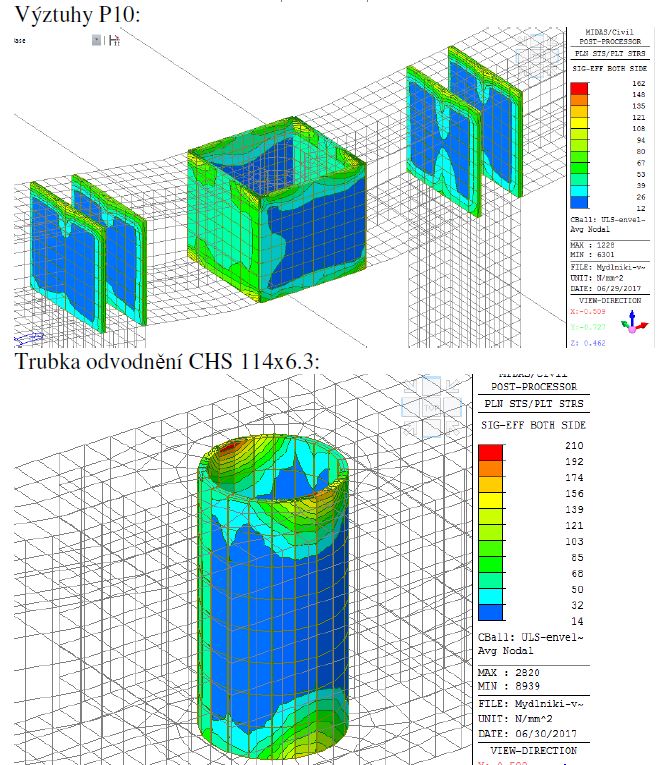

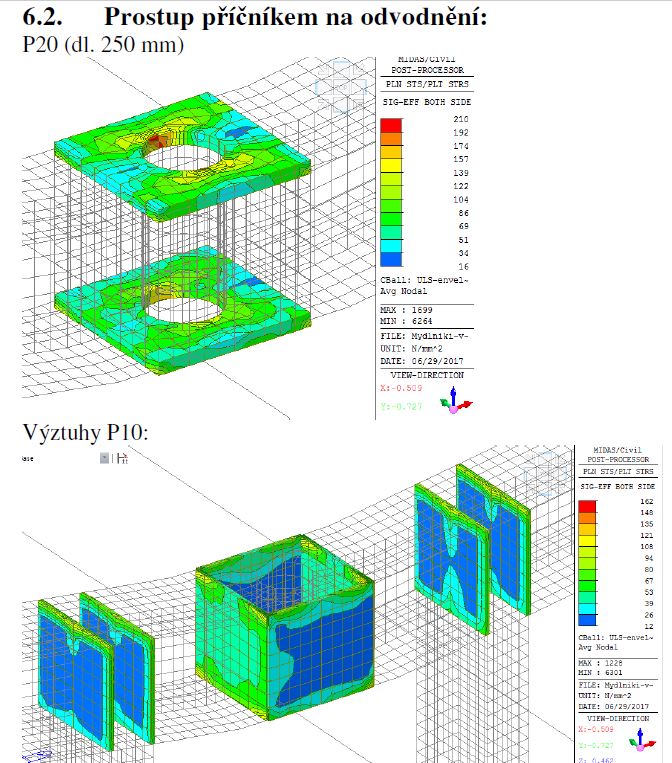

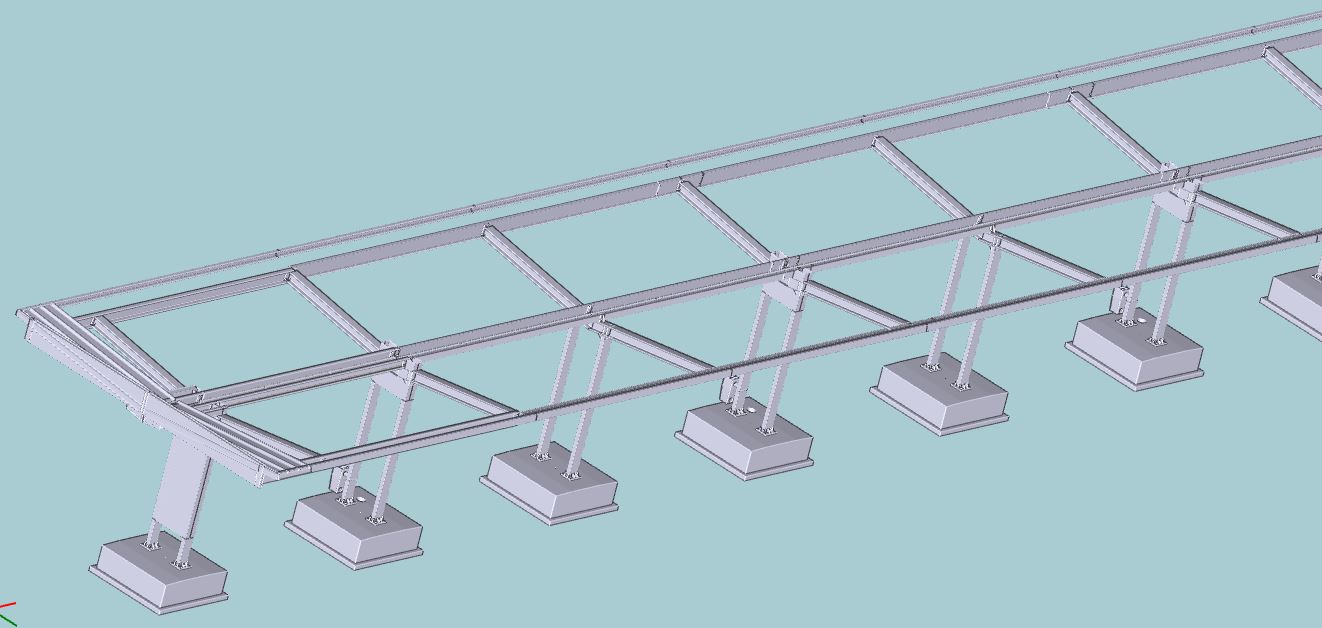

Model of the structureModel of the structure Output from structural analysis reportOutput from structural analysis report Output from structural analysis reportOutput from structural analysis report
