Structural design of Railway station shelters

Structural design of railway terminal shelters.
Documentation in competition phase (location is not specified with regard to client request).

Axial distance between columns (span): from 7,35 m to 10,35 m
Shelter widths: 4.73 m, 4.99 m, 10.9 m
Shelter length: 56.25 m

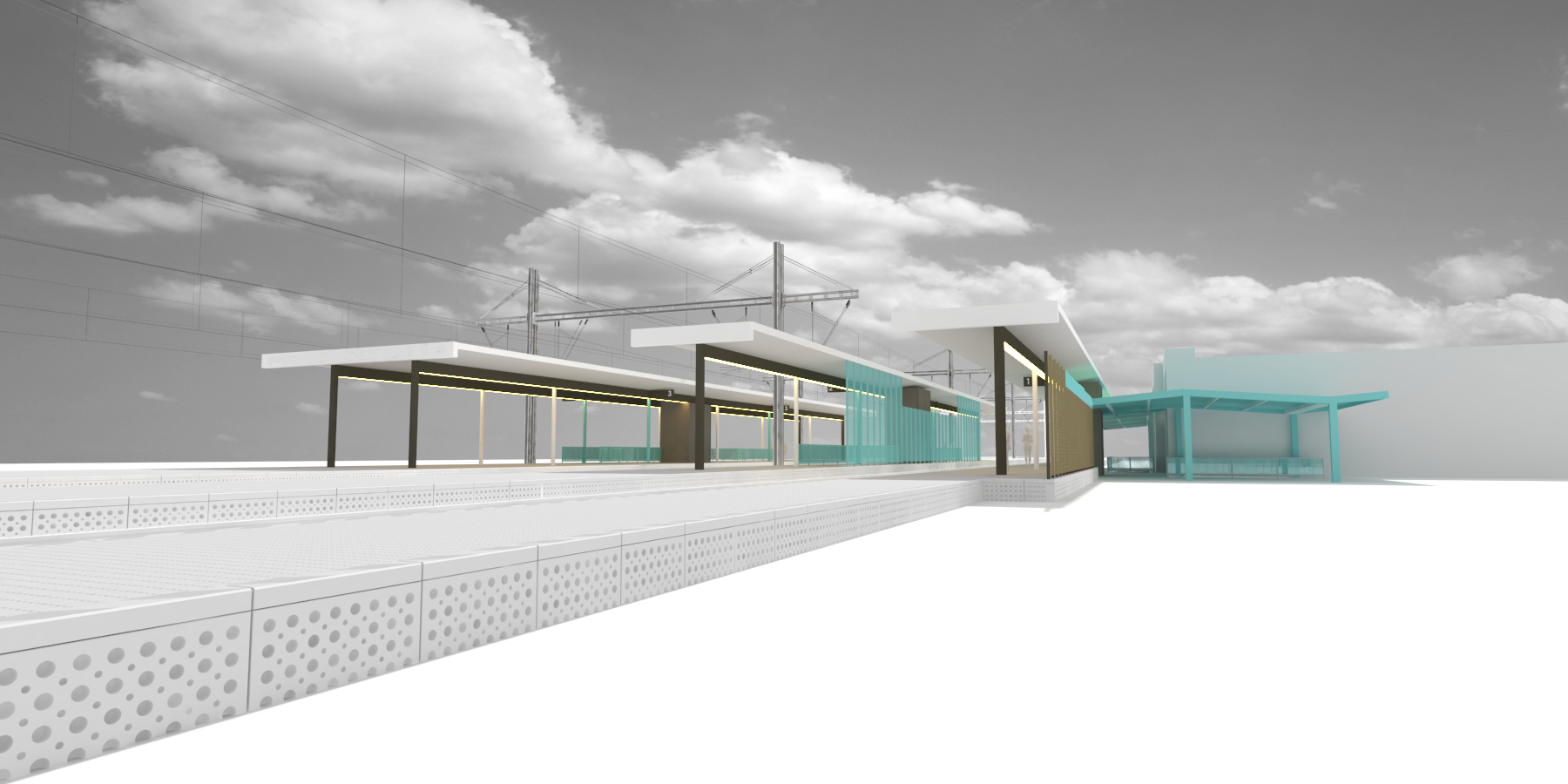

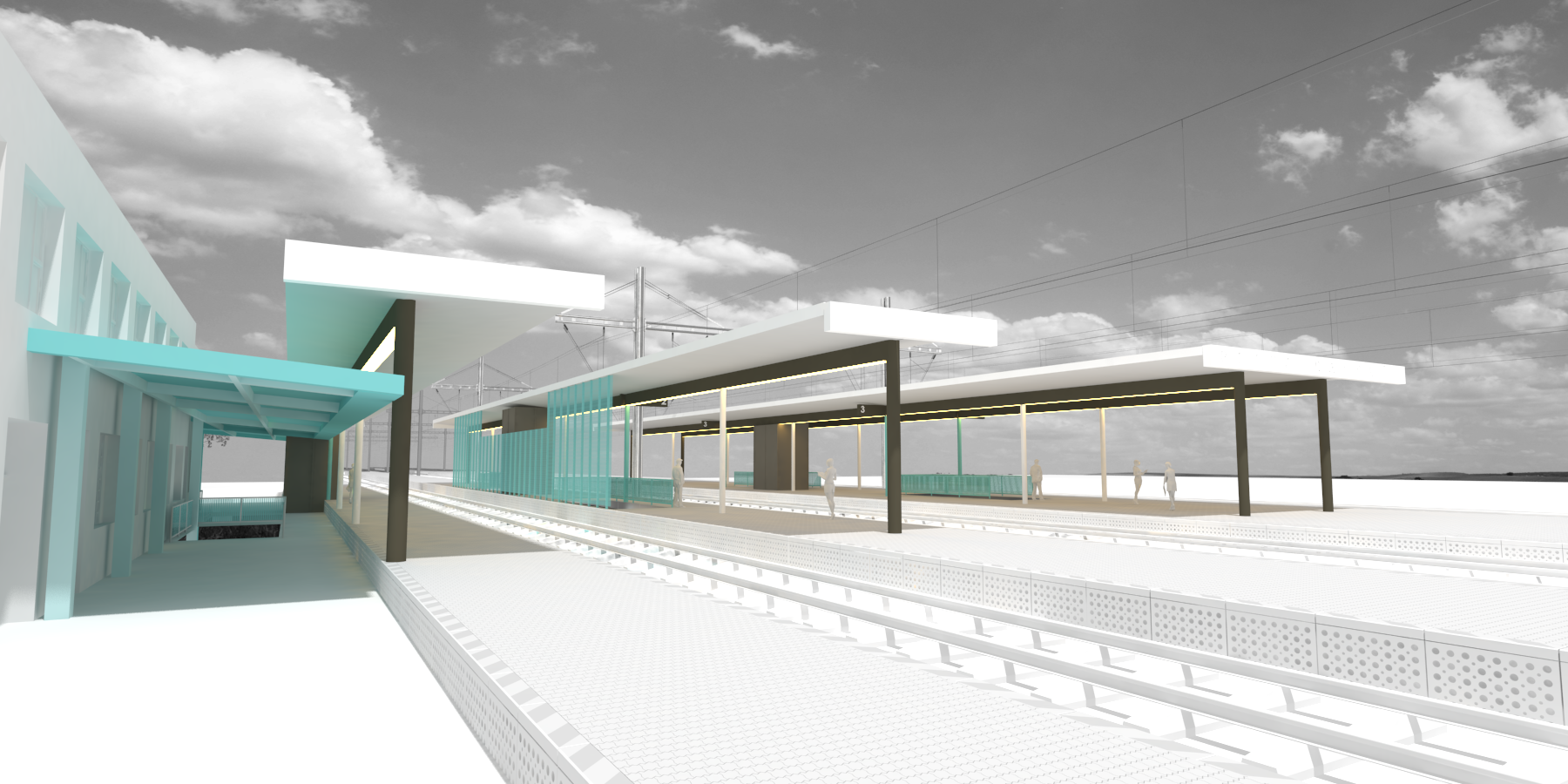

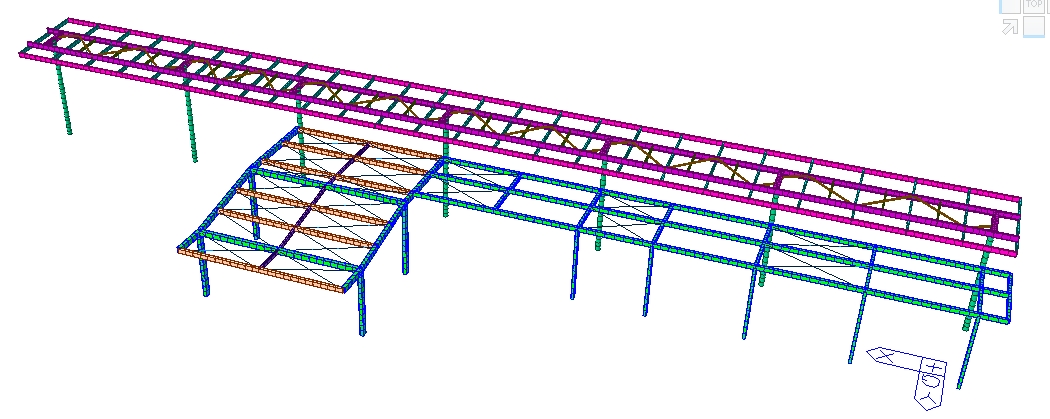

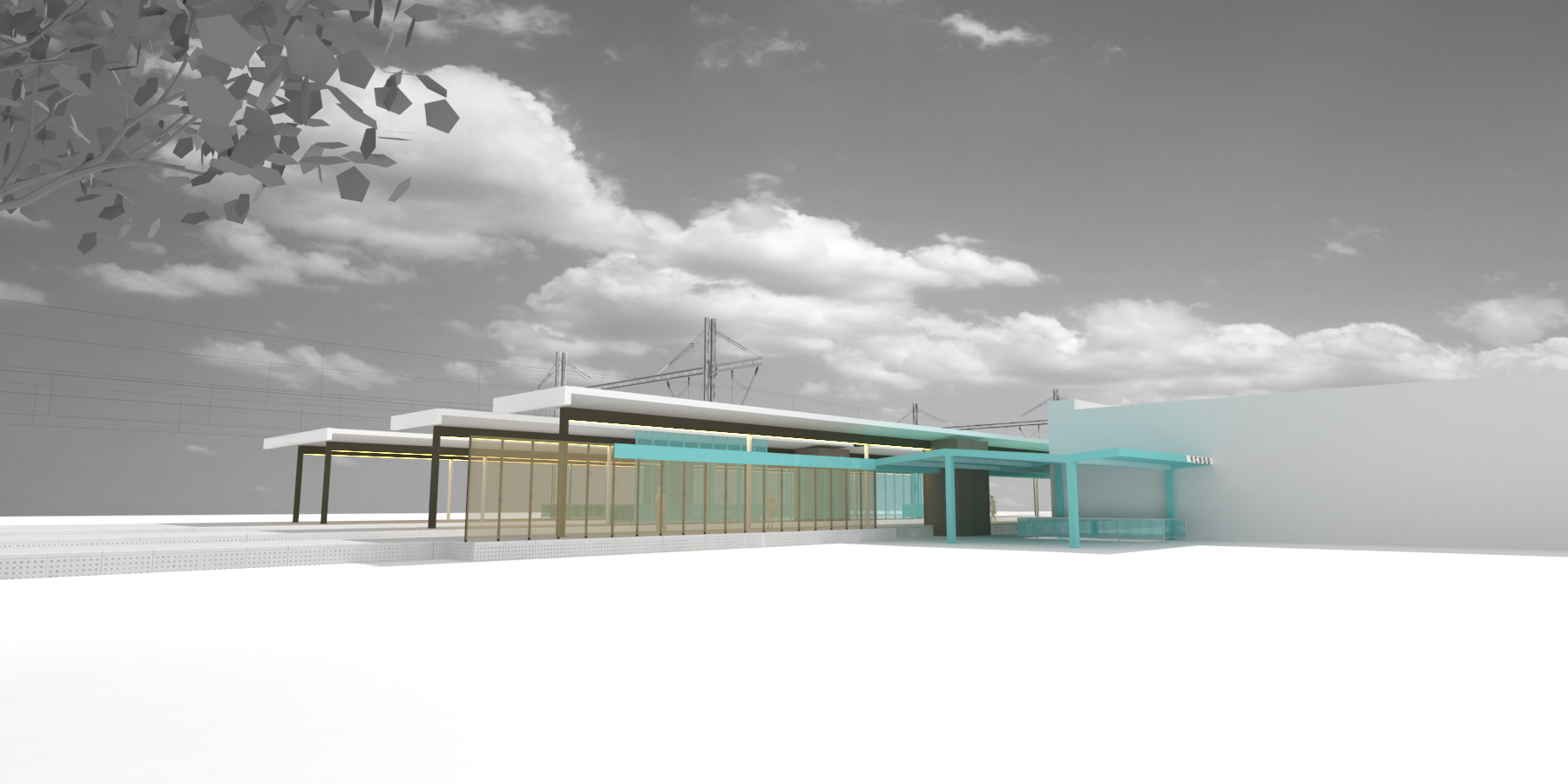

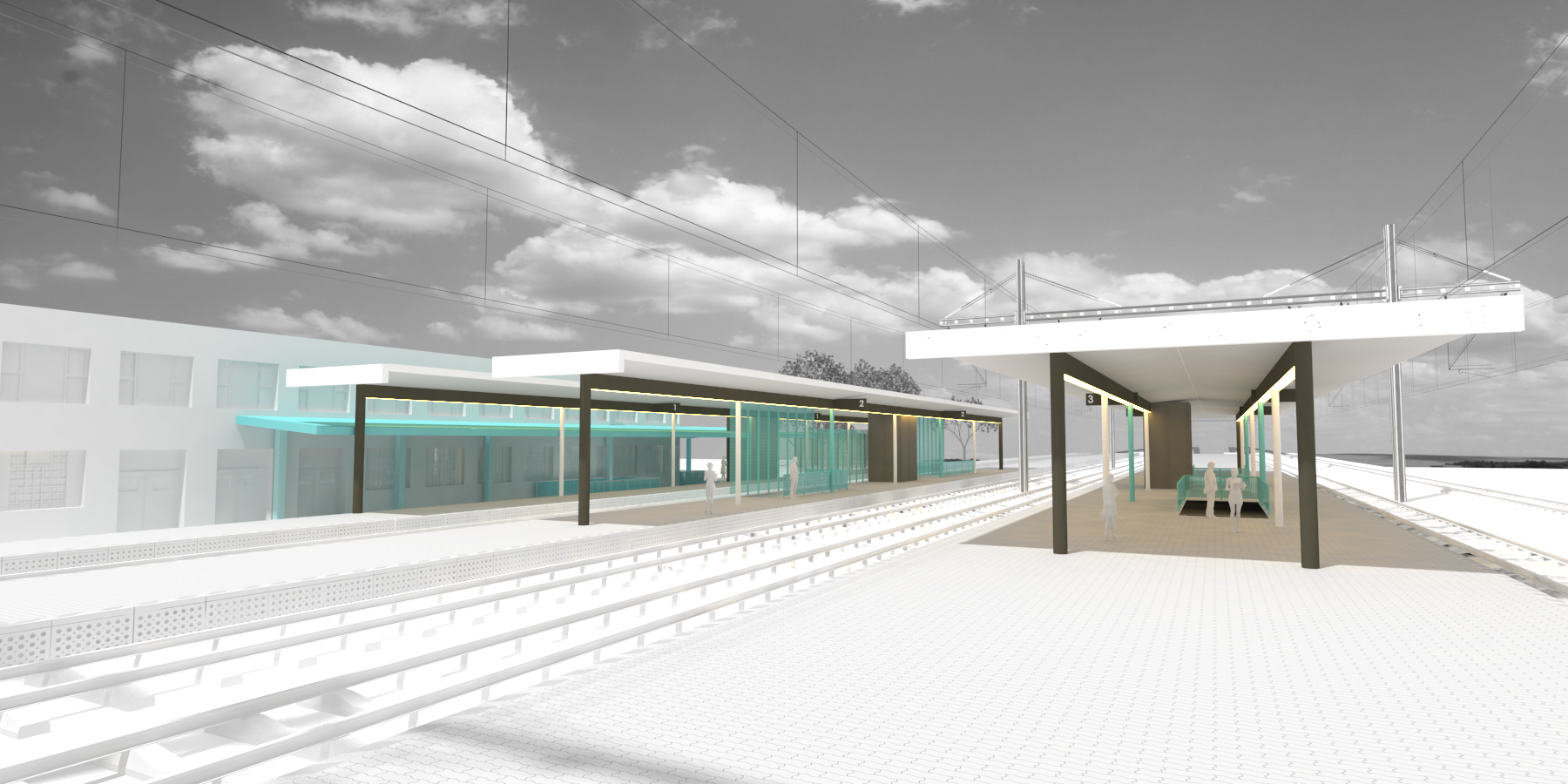

Visualization made by our customer (architectural design office)Visualization made by our customer (architectural design office) Visualization made by our customer (architectural design office)Visualization made by our customer (architectural design office) Visualization made by our customer (architectural design office)Visualization made by our customer (architectural design office) Visualization made by our customer (architectural design office)Visualization made by our customer (architectural design office) Structural model - platform by station buildingStructural model - platform by station building
