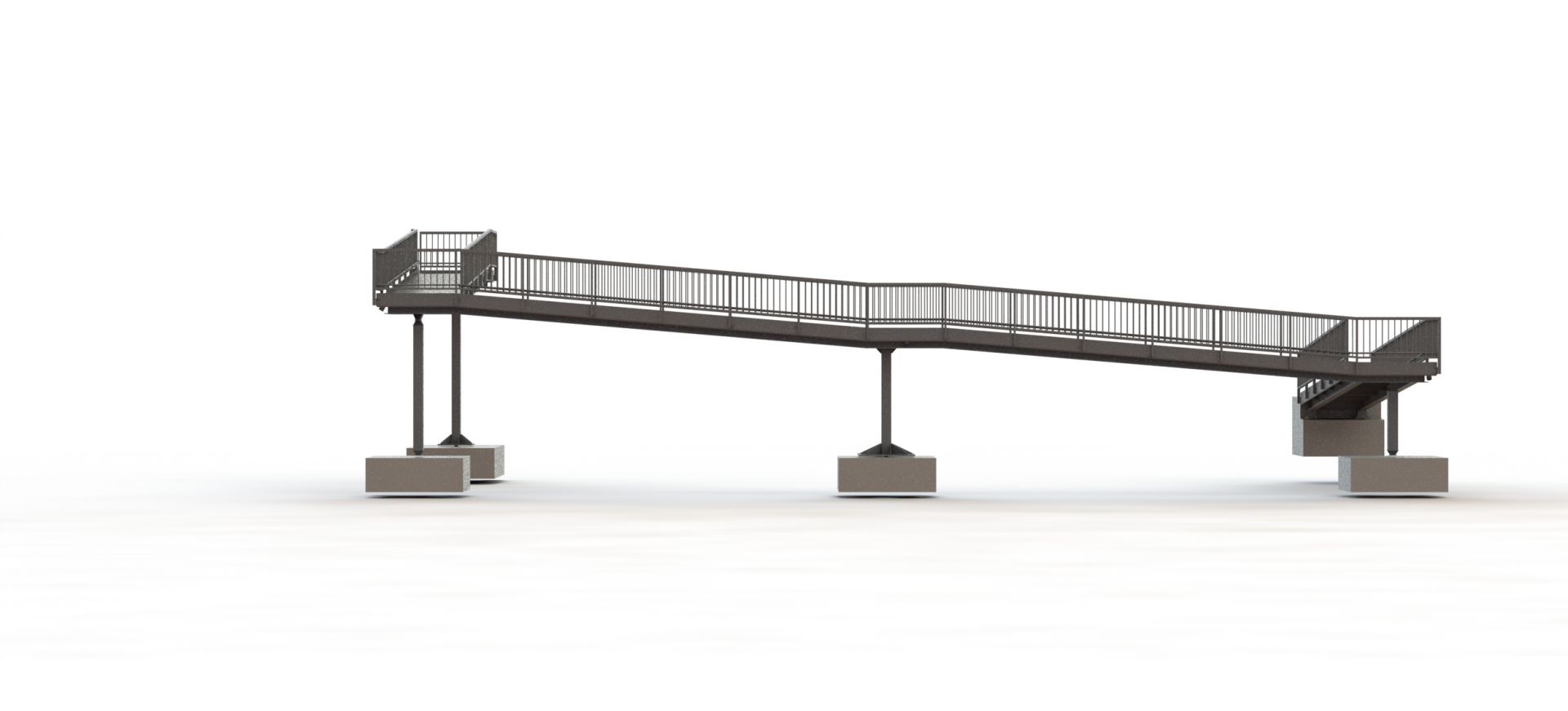

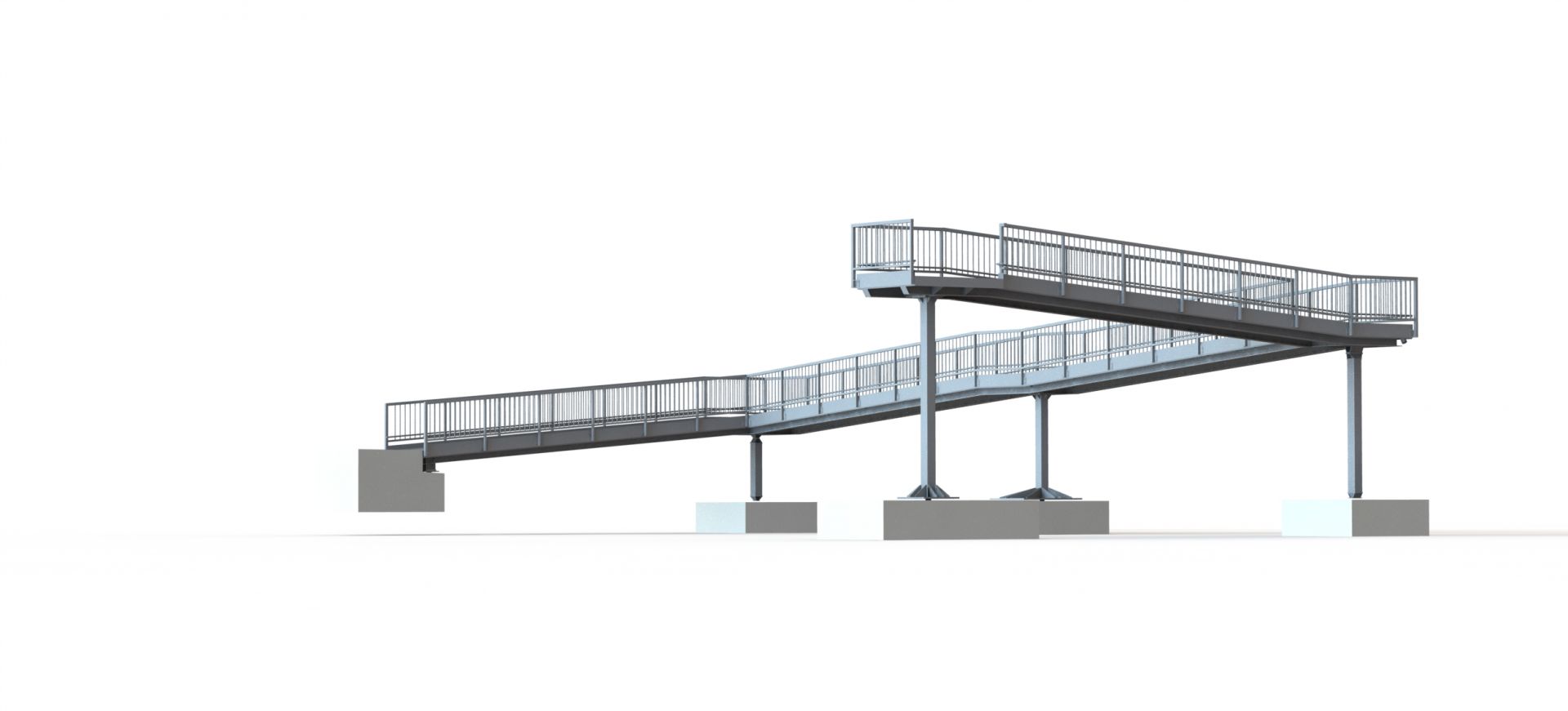

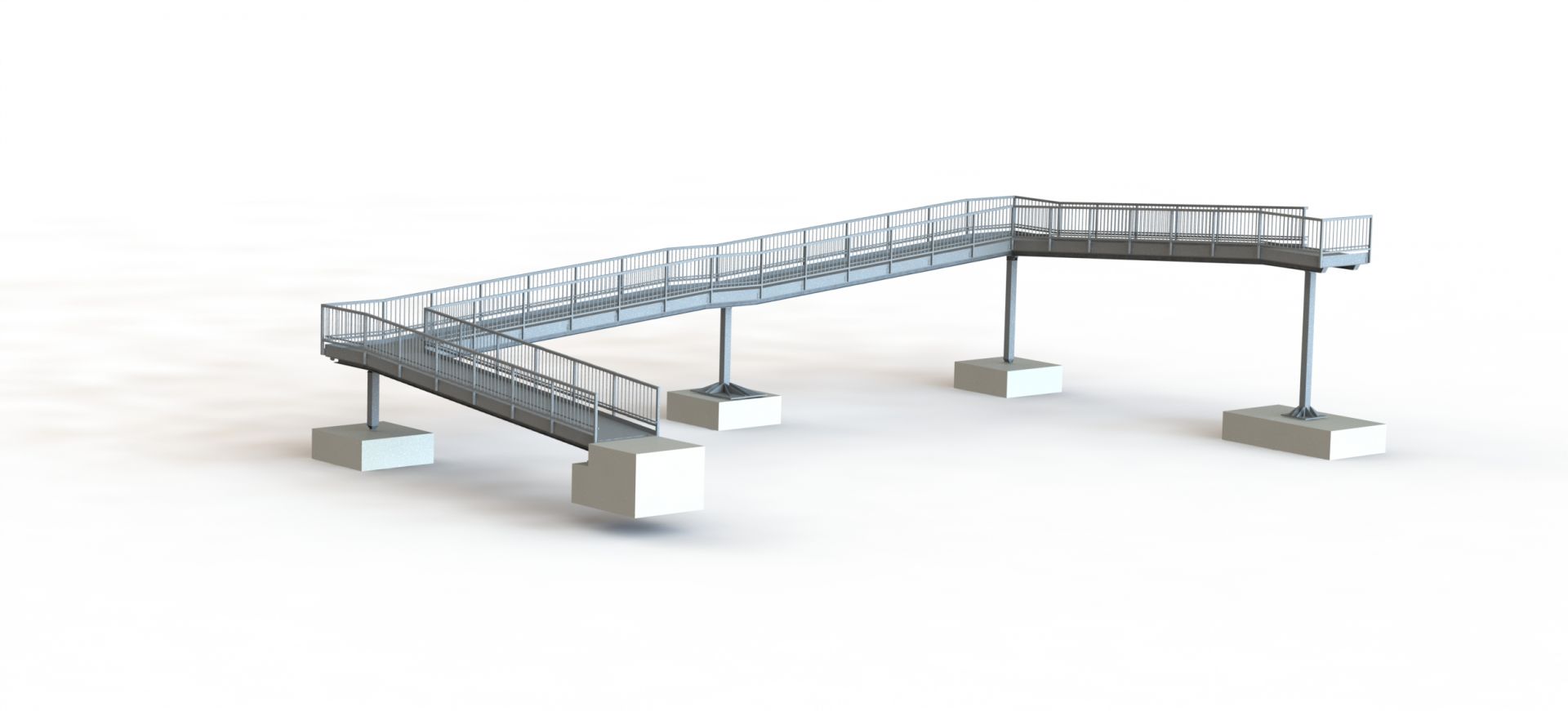

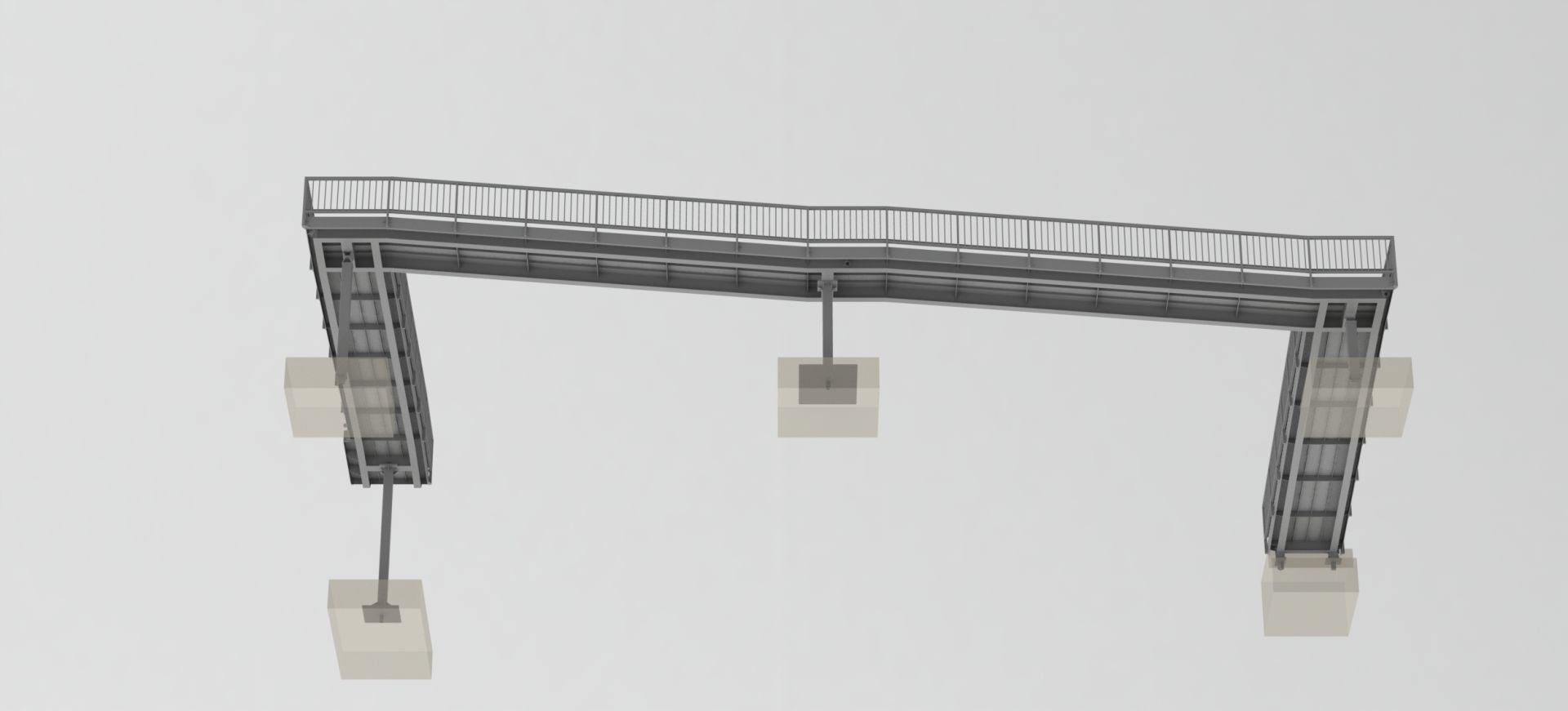

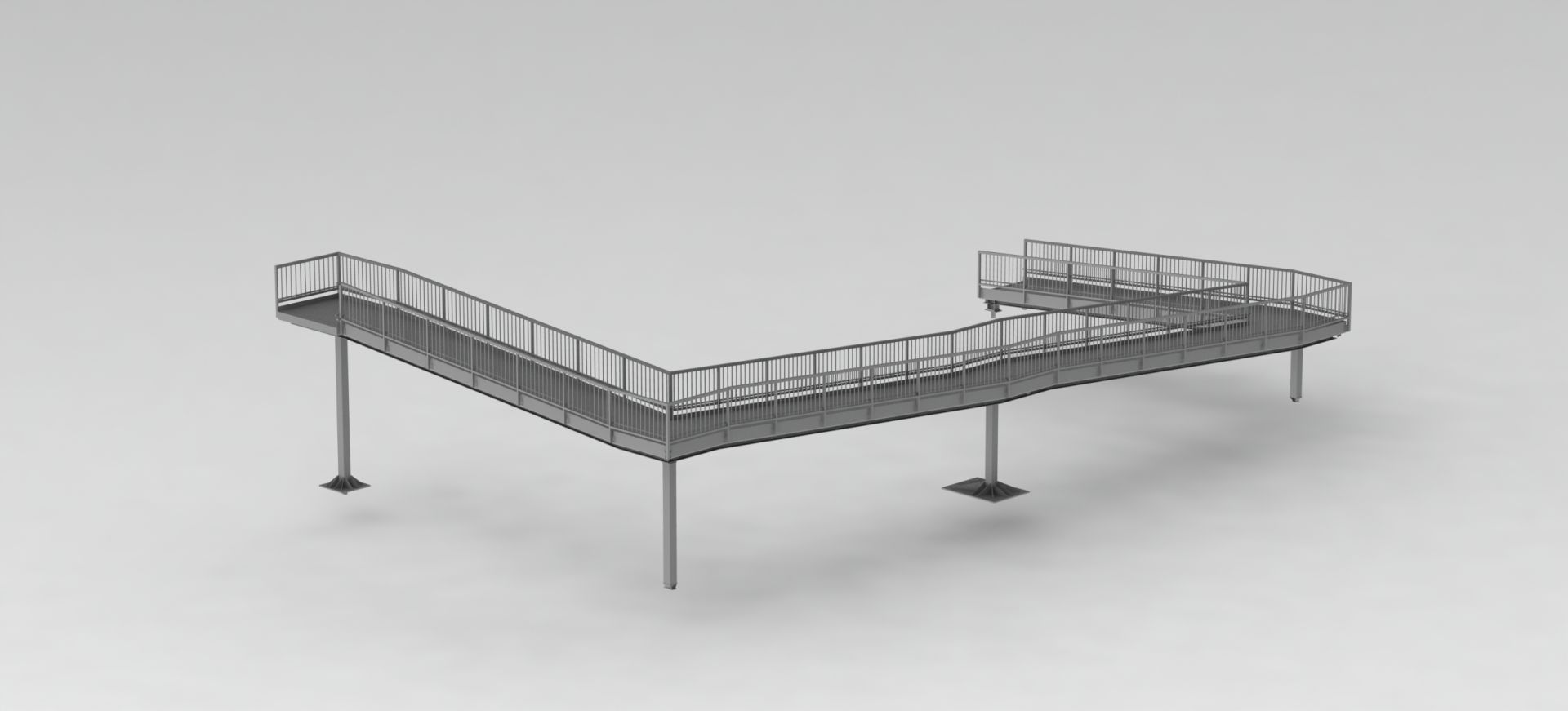

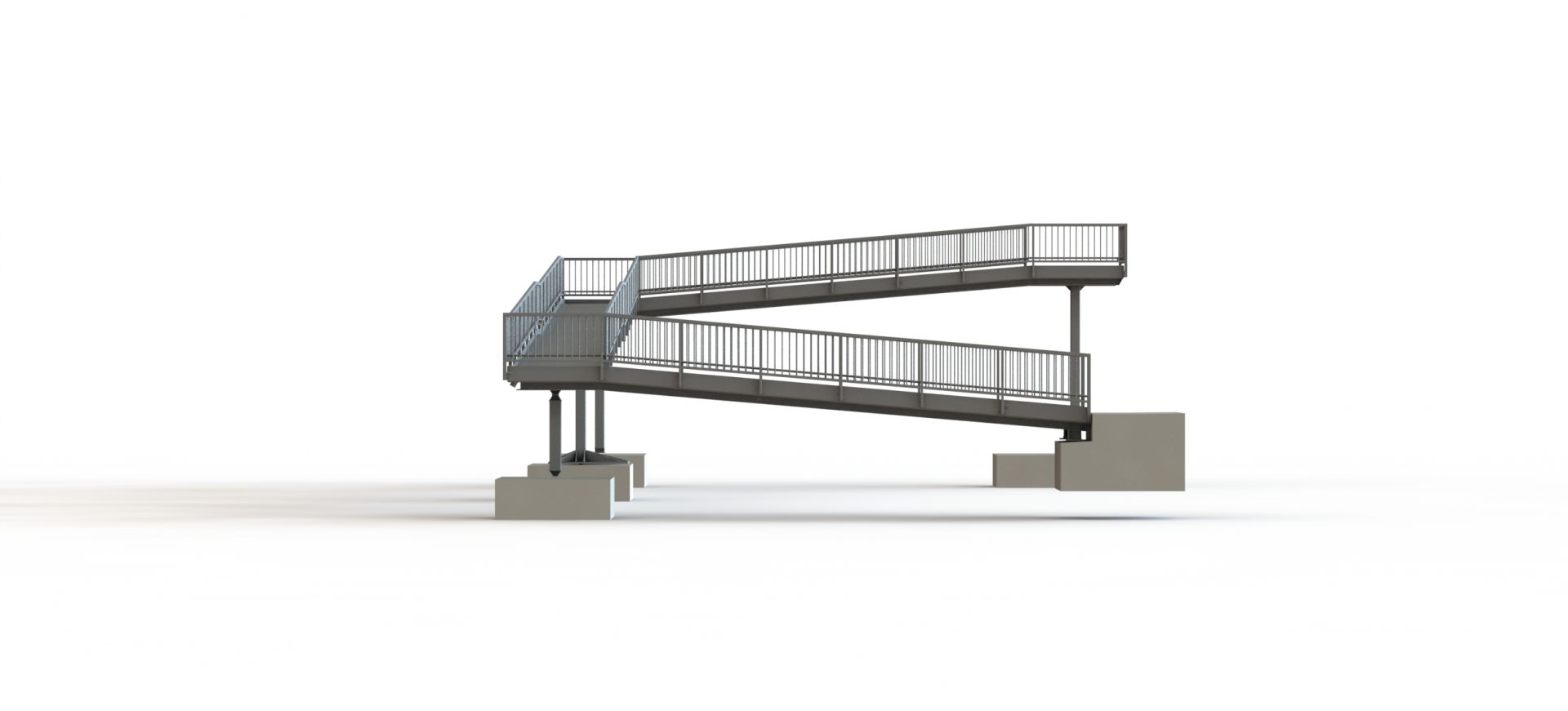

Ramp for pedestrians in atrium of shopping center

Our company made complete design documentation for reconstruction of ramp for pedestrians in atrium of small shopping center in Brno.
Our outputs were docummentation for permission for construction, complete design documentation and shop drawings.

Our client chosed steel orthotrophic steel deck.

Overall length of the ramp is 54 m.

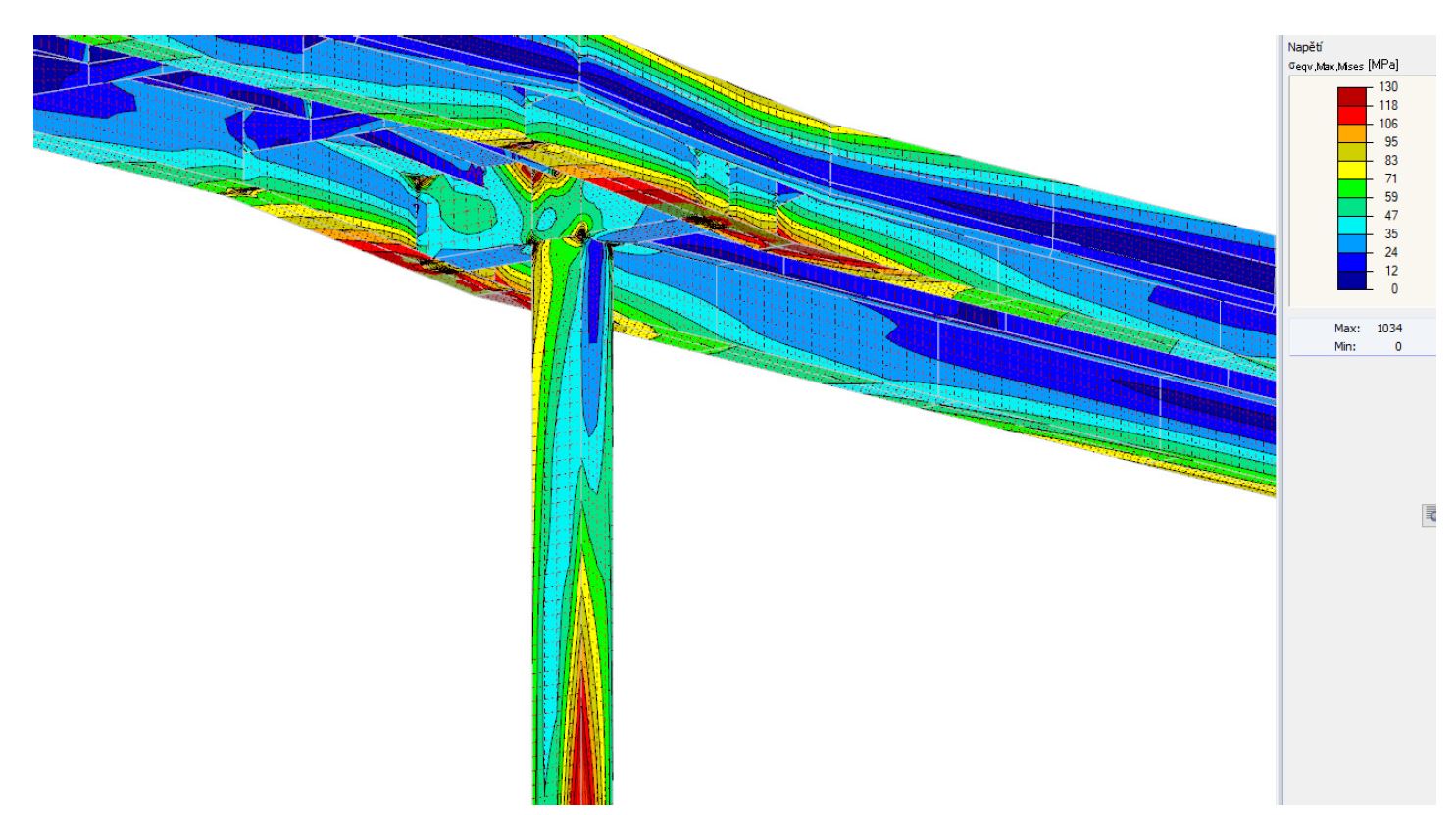

As part of structural calculation was performed dynamic calculation.

Construction is planned on 2019 (detailed information will be added).
